4G Mobile DVR Designed for Passenger Coaches Buses Taxis and Dangerous Goods Vehicles with Stable Performance and Easy Operation
Ürün ayrıntıları:
| Menşe yeri: | Shenzhen |
| Marka adı: | Oxiang /OEM |
| Sertifika: | CE.RoHS,FCC |
| Model numarası: | MD264 |
|
Detay Bilgi |
|||
| Ağ: | 2,4 GHz Wi-Fi (IEEE 802.11 b/g/n) | Kırmızı LED Yanıp Sönüyor: | Güç Tamam, WiFi Bağlantısı Bekleniyor |
|---|---|---|---|
| Güç Türü: | Şarj Edilebilir 18650 Pil veya Sert tel AC12V-24V | TÜKETİM: | Çalışma modu: 170mA Bekleme Modu: 200μA |
| Ağırlık: | 600 g | Alma Aralığı: | 5 metre |
| Çalışma Nemi: | <%95 | Mesaj işlevi: | Mesaj Bırakma İşlevini Destekler |
| Deklanşör: | 1/25~1/100, 000 Saniyede | BAĞIL NEM: | %85 yoğuşmasız |
| IR mesafe: | 3 metre | Görüntü Sensörü: | SC2335/SC233A |
| yatay açı: | 140 yatay açı | Tespit açısı: | 110° |
| İşlev: | 3G/4G/GPS/WIFI | Güç: | DC12V/2A |
| Görüntü Ayarı: | HD/SD Desteği Ayna | Su geçirmez oranı: | IP55 |
| Kamera: | 1 mega piksel, OV9732 (125°Geniş açı) | Geniş açı: | 130 derece |
| Ekran Boyutu: | 7 inç | Kamera giriş çözünürlüğü: | AHD1080P/720P/CVBS |
| Sensör tipi: | Video Sayımı, %98 doğruluk | Ana makine boyutu: | 200(U) x187(G) x62(Y) mm |
| Sıkıştırma: | H.265 | Voltaj girişi: | 8 - 36V ultra genişliğe uyum sağlayın |
| Yazılım Desteği: | CMSV6 ve özel platformumuz | Garanti: | 12 ay |
| SDK'sı: | İkinci geliştirme için ücretsiz SDK | kablosuz indirme: | Destek |
| Operasyon Arayüzü: | Grafik Kullanıcı arayüzü (OSD menüsü) | Özelleştirme: | Evet |
| Su geçirmez: | IP69K | Şok geçirmez: | Çift titreşim önleme |
| Fonksiyonlar: | Kişi sayacı, 3G, GPS, G sensörü, UPS | ||
| Vurgulamak: | 4G mobile DVR for passenger coaches,4G mobile DVR for buses with stable performance,4G mobile DVR for dangerous goods vehicles |
||
Ürün Açıklaması
4CH 4G WiFi HDD/SSD MDVR specification sheet
Model:OX-MD264
1.1 Product features
This series of products is a fully functional Hard Disk Driver 4G mobile DVR designed for the mobile surveillance market. Supports wide power voltage input, supports high-capacity HDD/SSD and TF card recording; Use professional and reliable aviation plug connector; High appearance, enough materials, good heat dissipation; The device has powerful functions, rich interfaces and low power consumption; Simple installation, easy operation, and extremely stable; widely used in passenger Coach, buses, taxis, school buses, logistics vehicles, dangerous goods vehicles, Sedan cars, ships, etc.
The detailed features are as follows:
- Industrial design, stable and reliable, easy to install
- Video adopts the international mainstream H.265 encoding format, and the audio adopts G711a encoding. It can support up to 4 channels.
- Professional vehicle power supply, can adapt to 8 to 36V ultra-wide voltage input, with multiple protection circuits such as overload/short circuit/reverse connection

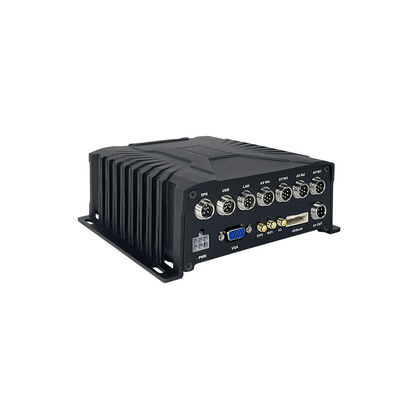

- Highly reliable aviation plug input and output interface, easy to install and plug, and stronger Vandal-proof performance
- Support 4 channels of video and audio input, frame rate and image quality are adjustable
- Support 1x2.5inch HDD/SSD +1xTF Card Storage
- Built-in Farad capacitor. The video content has power-off protection function
- Support video loss alarm function
- Independent delay Power shutdown, can support the system to continue running after the vehicle is turned off, the delay time can be set by yourself
- Supporting CMS client platform, providing multiple functions such as playback, analysis, management, etc
- Support HDD/SSD, TF card and U disk to upgrade firmware, support network remote firmware upgrade.
- Supports 2 USB ports, the front can be connected to a USB drive to export videos or upgrade firmware, and the back can be connected to a fireproof box to backup videos
- Support 8 x IO alarm input, 2 x IO alarm output
- Support 2 x RS232 and 1 x RS485
- Insert the intercom handle for two-way communication between the platform and the device
- Support pulse vehicle speed. Optional
- Support 4G, GPS, LAN(RJ45)
- Optional WiFi function
